CRP-RA09A-07

This robot features a compact, lightweight, and modular design that minimizes failure rates and allows for flexible installation, including upside-down mounting. With a 916mm reach and 7kg payload, it delivers smooth and stable performance through advanced servo control. It also includes a leak-proof structure and integrated cable management for easy customization and maintenance.

Main Technical Features

7kg

load

916mm

reach

0.03mm

acc.

TCP*(Typ speed)

ftpr.

Robot body IP54, Wrist IP67

Main features and characteristics

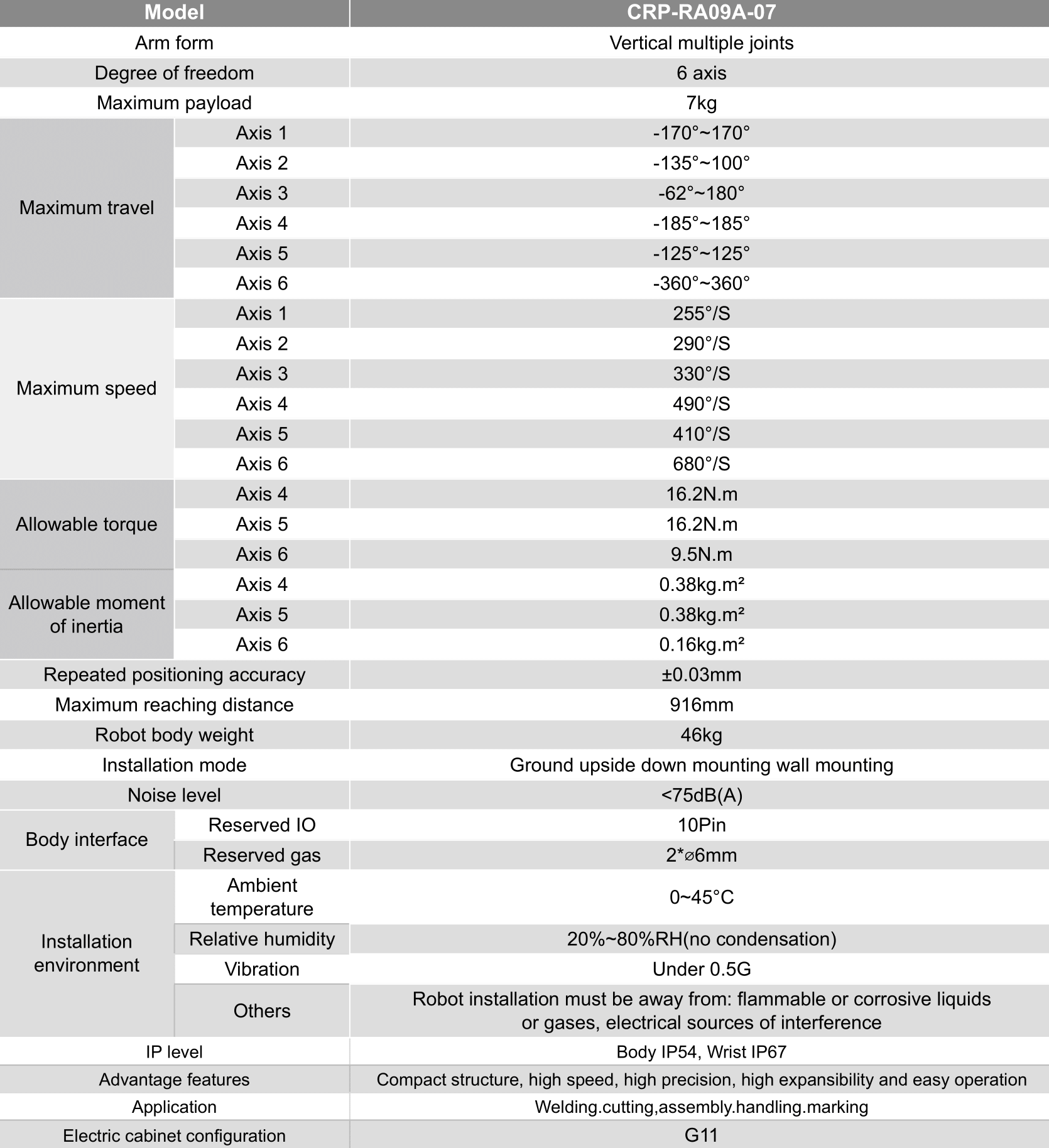

Specification

Technical Documents

Download all our documents or select the relevant one from the drop-down menu below and get the most out of our products.

CRP-RA09A-07
