NEW
CP Series
Palletizing all-in-1 solution for flexible operations
TURNKEY PALLETIZER
Discover the CP Series
The modular solution for all stacking tasks
Modular
Multiple configurations of cobots/columns. Standalone components.
Safe
ISO 10218 & ISO 13849. Optional safety scanners.
Up to 30kg
High payload capacity (20kg, 25kg, 30kg options)
User-friendly
Embedded palletizing software, no programming required. Service-friendly design.
Flexible
Compact footprint, easy to move. Supports third-party equipment and software.

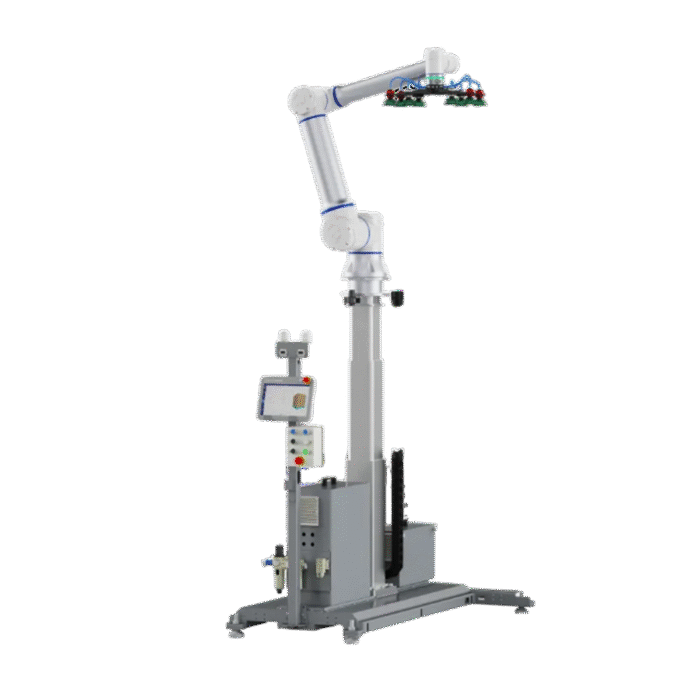

MODULAR
Efficient modular design
The CP Series has a heightened focus on modular design, to give customers more flexibility, service-friendliness, and faster lead time.
EOAT
Single/dual vacuum cups - Optional
Cobot arm
CS620 / CS625 / CS530H
Lifting column
Telescopic version - 1700mm Max height
Cobot controller
CS Series standard controller, AC type
Safety scanners
Reduced mode and safety stop - Optional
Supporting base
System controller
Teach pendant stand
Teach pendant
EOAT
Single/dual vacuum cups - Optional
Cobot arm
CS620 / CS625 / CS530H
Lifting column
Fixed version - 1000mm height
Cobot controller
CS Series standard controller, AC type
Safety scanners
Reduced mode and safety stop - Optional
Supporting base
System controller
Teach pendant stand
Teach pendant
ERP400 / ERP400S
Fixed or telescopic column
Adjustable column with telescopic lifter
3
cobots
20-30
kg
1200*1200
mm
2400
mm
Fixed pedestal
3
cobots
20-30
kg
1200*1200
mm
2400
mm
CP SERIES
Palletizing for everyone
Cost-effective and ultra flexible, this modular solution is ready to meet the palletizing needs of companies of all sizes.
Boost operations and returns
The Elite Robots CP Series is here to streamline your end-of-line operations! Ensuring a fast installation just right of the box, this cost-effective, safe and easy to use modular palletizing solution can accommodate diverse payloads and pallet heights and easily adapt to different customer requirements. ROI in less than 12 months.
Single and dual box-handling
Equip your Elite Robots cobot arm with the best suction grippers on the market and start performing your palletizing and depalletizing tasks. It supports both single and dual vacuum cups and can handle up to 7 boxes per minute (in single mode) and 14 boxes per minute (in dual mode).
PROPRIETARY SOFTWARE
Fast Setup. Zero Programming.
The palletizing wizard embedded in the Elite Robots proprietary software makes the user interface very intuitive and easy to use. Fast setup in just 4 steps and under 10 minutes and redeployment in less then 10 minute, with no programming required.
Third-party programming SW are also supported, including:
GREATER OPENNESS
Supporting Third-Party bases
In addition to being part of Elite Robots’ CP Series proprietary solution, CS cobots can integrate seamlessly into the palletizing bases of leading robotic OEMs. This gives high flexibility to users, who can choose the best solution for their needs while always benefiting from the excellent performance of Elite Robots’ collaborative robots.
Third-party compatible bases include:
คุณสมบัติและคุณลักษณะหลัก
รายละเอียดสเปค
| Parameter | Spec |
|---|---|
| Payload | 20kg |
| Radius | 1800mm |
| Repeatability | ±0.1mm |
| Axis | 6 |
| Max Height | 2400mm |
| Max Pallet Size | 1200 mm × 1200 mm |
| Max Stacking Height | 2400mm |
| Weight | 430 kg |
| Parameter | Spec |
|---|---|
| Payload | 25kg |
| Radius | 1500mm |
| Repeatability | ±0.8mm |
| Axis | 6 |
| Max Height | 2400mm |
| Max Pallet Size | 1200 mm × 1000 mm |
| Max Stacking Height | 2300mm |
| Weight | 428 kg |
| Parameter | Spec |
|---|---|
| Payload | 30kg |
| Radius | 1522mm |
| Repeatability | ±0.1mm |
| Axis | 5 |
| Max Height | 2400mm |
| Max Pallet Size | 1200 mm × 1000 mm |
| Max Stacking Height | 2300mm |
| Weight | 400 kg |
| Parameter | Spec |
|---|---|
| Payload | 20kg |
| Radius | 1800mm |
| Repeatability | ±0.1mm |
| Axis | 6 |
| Max Height | 2400mm |
| Max Pallet Size | 1200 mm × 1200 mm |
| Max Stacking Height | 1700mm |
| Weight | 410 kg |
| Parameter | Spec |
|---|---|
| Payload | 25kg |
| Radius | 1500mm |
| Repeatability | ±0.8mm |
| Axis | 6 |
| Max Height | 2400mm |
| Max Pallet Size | 1200 mm × 1000 mm |
| Max Stacking Height | 1600mm |
| Weight | 380 kg |
| Parameter | Spec |
|---|---|
| Payload | 30kg |
| Radius | 1522mm |
| Repeatability | ±0.1mm |
| Axis | 5 |
| Max Height | 2400mm |
| Max Pallet Size | 1200 mm × 1000 mm |
| Max Stacking Height | 1600mm |
| Weight | 380 kg |
| Parameter | Spec |
|---|---|
| Type | AC |
| I/O Ports | 24 DI, 24 DO (8 safety config. DI/DO); 2 AI, 2 AO; 4 High-Speed DI |
| I/O Power Supply | 24V/3A (internal), 6A (external) |
| Communication | RS485, Ethernet TCP/IP, Modbus TCP/RTU, Ethernet/IP slave, Profinet slave |
| Size | 505mm × 257mm × 462mm |
| IP Rating | IP44 |
| Weight | 16kg |
| Power Source | 100–240 VAC, 50–60 Hz |
| Parameter | Spec |
|---|---|
| Temperature Range | 0~50℃ |
| Peak Power Consumption | 2~3.5kW |
| Power Source | Single-phase 220VAC / 110VAC, 50~60Hz |
| Footprint | 1400mm × 1700mm |
| Parameter | Spec |
|---|---|
| Size | 301mm × 232mm × 54mm |
| Screen Size | 12.1" |
| Resolution | 1280 × 800 pixels |
| IP Rating | IP54 |
| Weight | 1.7 kg |
| Cable Length | 5.5 m |
| Temperature Range | 0~50℃ |
| Relative Humidity | 5%–95% (non-condensing) |
| Material | Aluminum, Plastic, Rubber |
| Input Method | Capacitive touch-screen |
| Parameter | Spec |
|---|---|
| Size | 301 mm × 232 mm × 105 mm |
| Screen Size | 12.1" |
| Resolution | 1280 × 800 pixels |
| IP Rating | IP54 |
| Weight | 1.8 kg |
| Cable Length | 5.5 m |
| Temperature Range | 0~50℃ |
| Relative Humidity | 5%–95% (non-condensing) |
| Material | Aluminum, Plastic, Rubber |
| Input Method | Capacitive full touch-screen, 3-mode enable key, jogging-keys, function keys |
ในกล่องมีอะไรบ้าง?
แกะกล่อง
Cobot arm
Elite Robots CS620 (60kg weight; 1882mm length; Ø240mm footprint), CS625 (58kg; 1789mm; Ø240mm), or CS530H (58kg; 1882mm; Ø240mm) robot arm. Standard IP65, upgradeable to IP68.
Base and Controllers
Based on a modular concept, the CP Series palletizing solution integrates two alternative bases with telescopic or fixed columns and independent and easy-to-maintain control units for the arm and system.
Operating station
Adjustable stand with the regular, IP54-rated ERP400 teach pendant (12.1″ full-touch screen, 5.5m cable). The ERP400S teach pendant with 3-mode enable key for enhanced safety is available optional.
WATCH THE SOLUTION AT WORK
CP Series in Action
See the CP series in action and learn how its modular design can help you boost your end-of-line operations and returns. With a fixed or telescoping pedestal with variable height up to 2400mm, payload up to 30 kg, and ultra-small footprint you can maintain high performance anytime, anywhere.
