CRP-RA21-10

The robot features a compact and lightweight design with a small wrist, high-speed and high-rigidity performance, and an IP67 sealed structure for harsh environments. Integrated advanced control algorithms, collision detection, gravity compensation, and stable power design ensure high precision, fast cycle times, reliable safety, and wide application adaptability.

Main Technical Features

10kg

load

2118mm

reach

±0.08mm

acc.

TCP*(Typ speed)

ftpr.

Wrist Ip67, Other IP54

Main features and characteristics

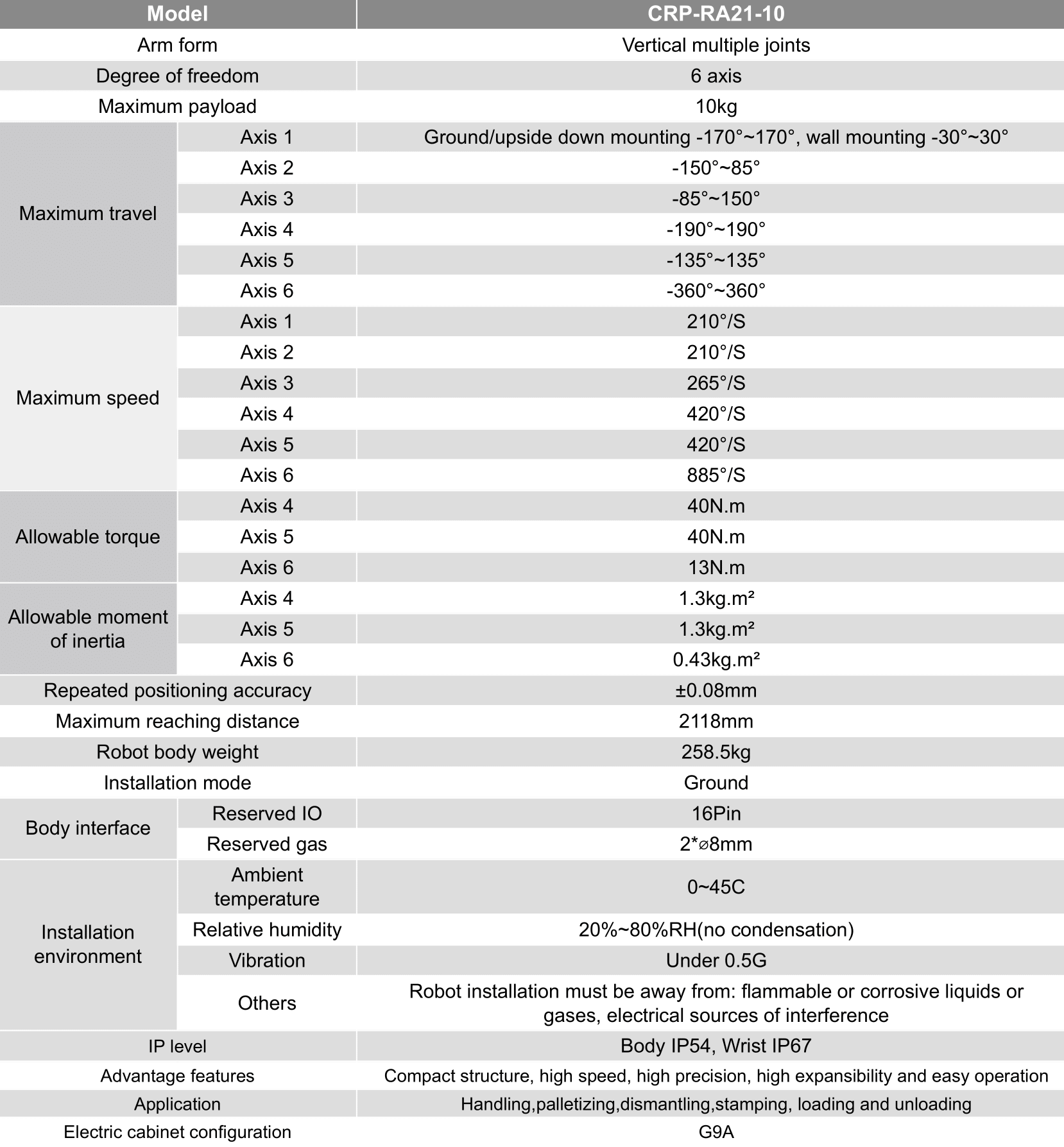

Specification

Technical Documents

Download all our documents or select the relevant one from the drop-down menu below and get the most out of our products.

CRP-RA21-10
