CRP-RA26-220

Step into the future of automation with our faster, tougher, and more efficient robot. With a 5% increase in load capacity and ultra-smooth motion control, this model outperforms its predecessor in every way. High-speed servo motors and anti-vibration tech ensure maximum accuracy at top speeds. Designed for high-density installation, it fits perfectly into compact production lines. Enjoy a lower total cost of ownership thanks to its durable, easy-to-maintain structure and a user-friendly interface designed for modern operators.

Main Technical Features

220kg

load

2650mm

reach

±0.06mm

acc.

TCP*(Typ speed)

ftpr.

Robot body IP54, Wrist IP67

Main features and characteristics

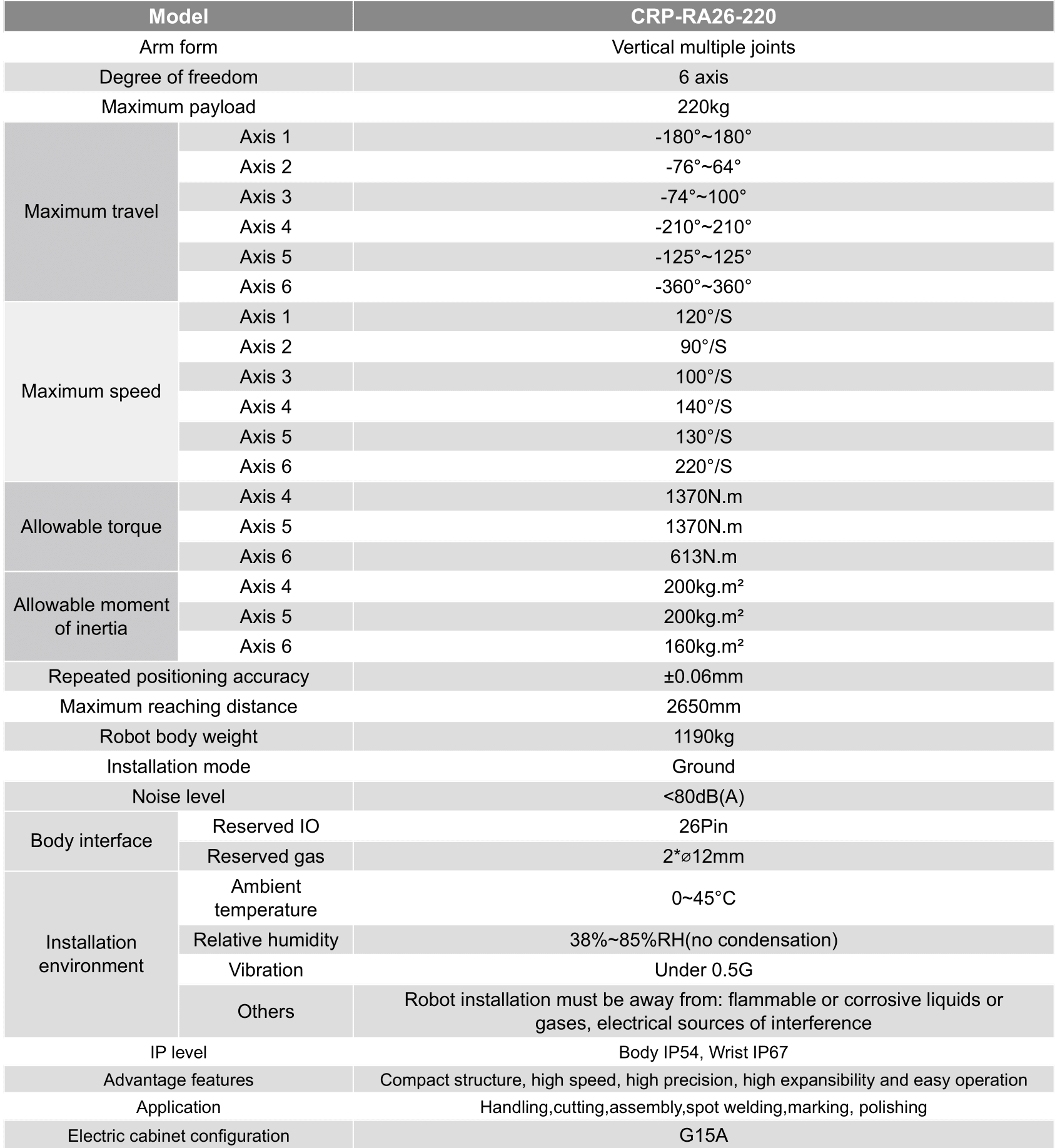

Specification

Technical Documents

Download all our documents or select the relevant one from the drop-down menu below and get the most out of our products.
