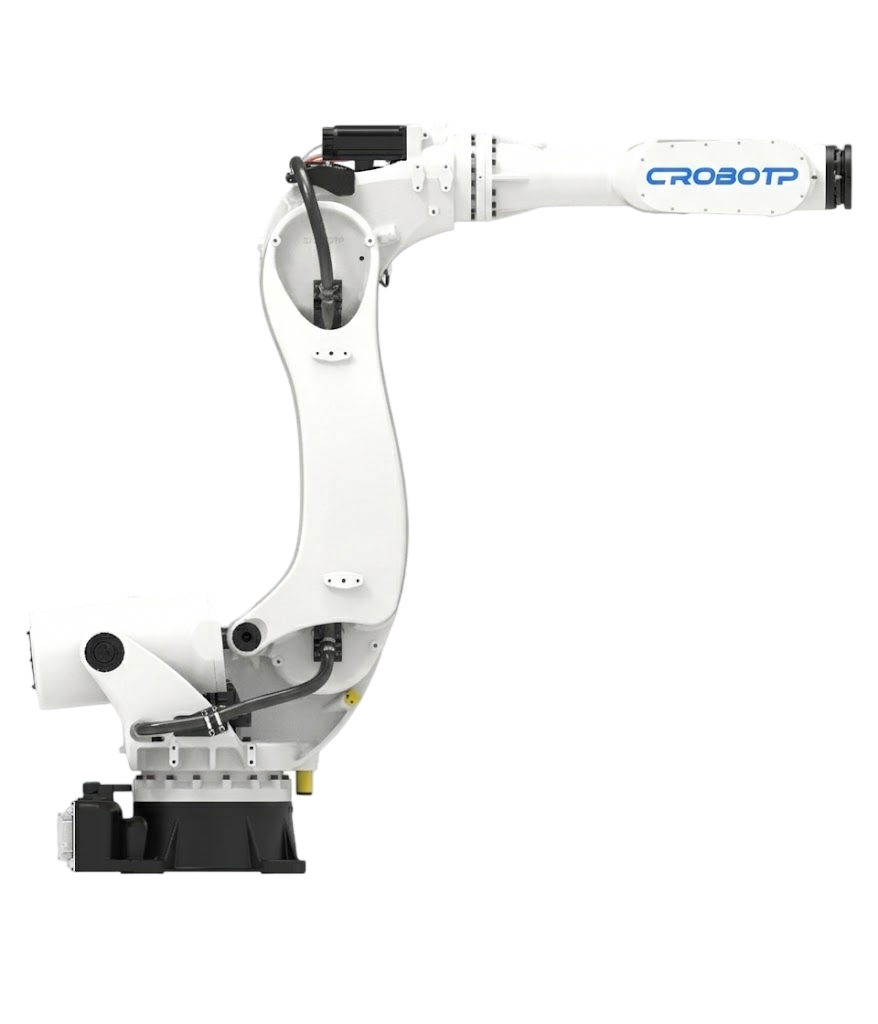

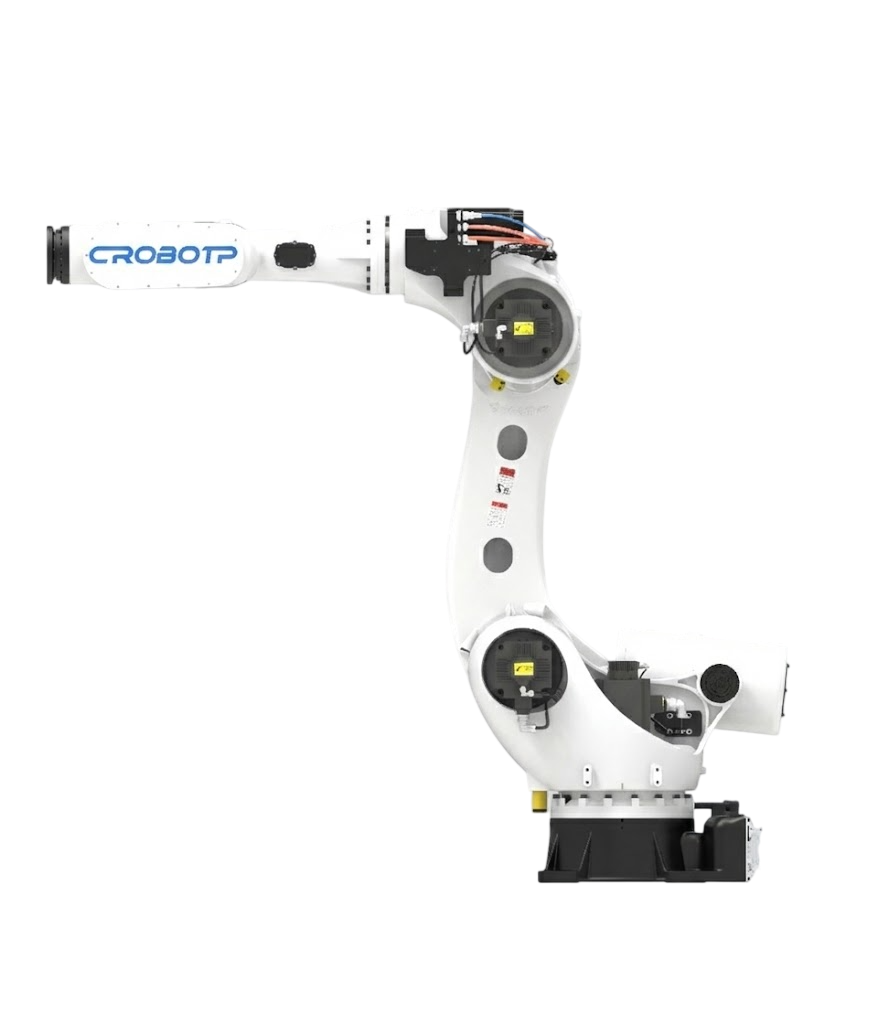

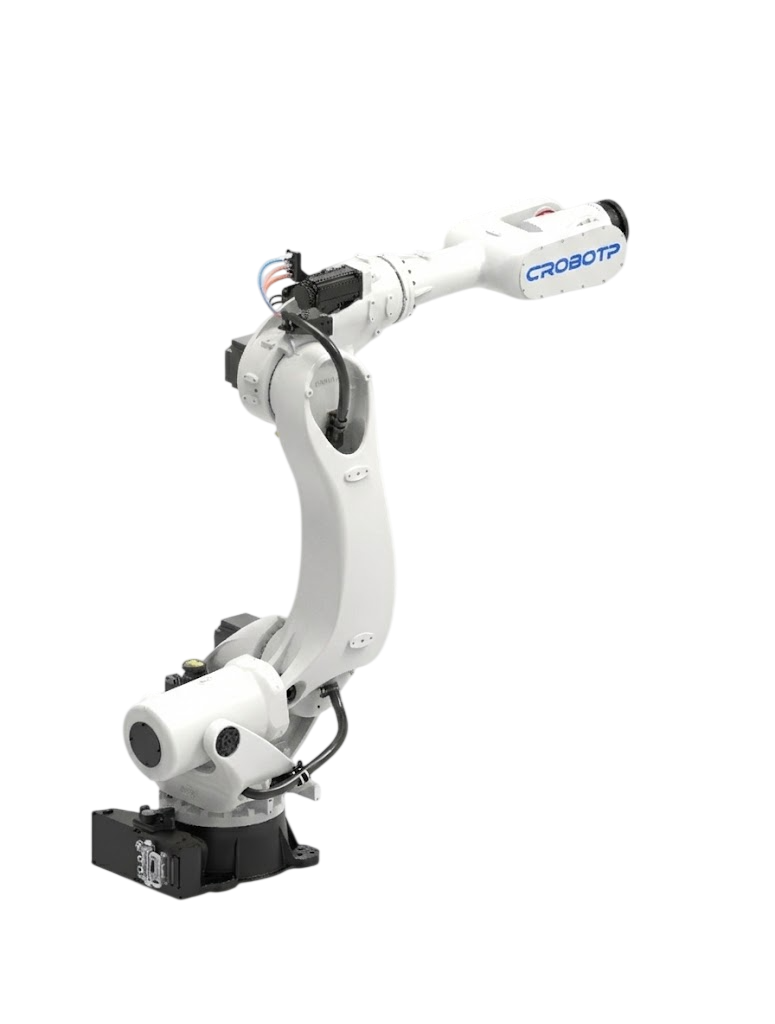

CRP-RA32-150

Meet the demands of modern manufacturing with a robot that merges a compact, space-saving design with superior power. Its built-in motor structure enhances flexibility for small-space operations without compromising its impressive 3.2-meter reach or 150kg payload. The high-precision RV reducer and advanced vibration control ensure that every movement is fast, steady, and precise. Engineered for high-density installation and simplified wiring, this robot offers a friendly operation interface that makes collaborative work and maintenance faster and more convenient than ever.

Main Technical Features

150kg

load

3107mm

reach

±0.06mm

acc.

TCP*(Typ speed)

ftpr.

Robot body IP54, Wrist IP67

Main features and characteristics

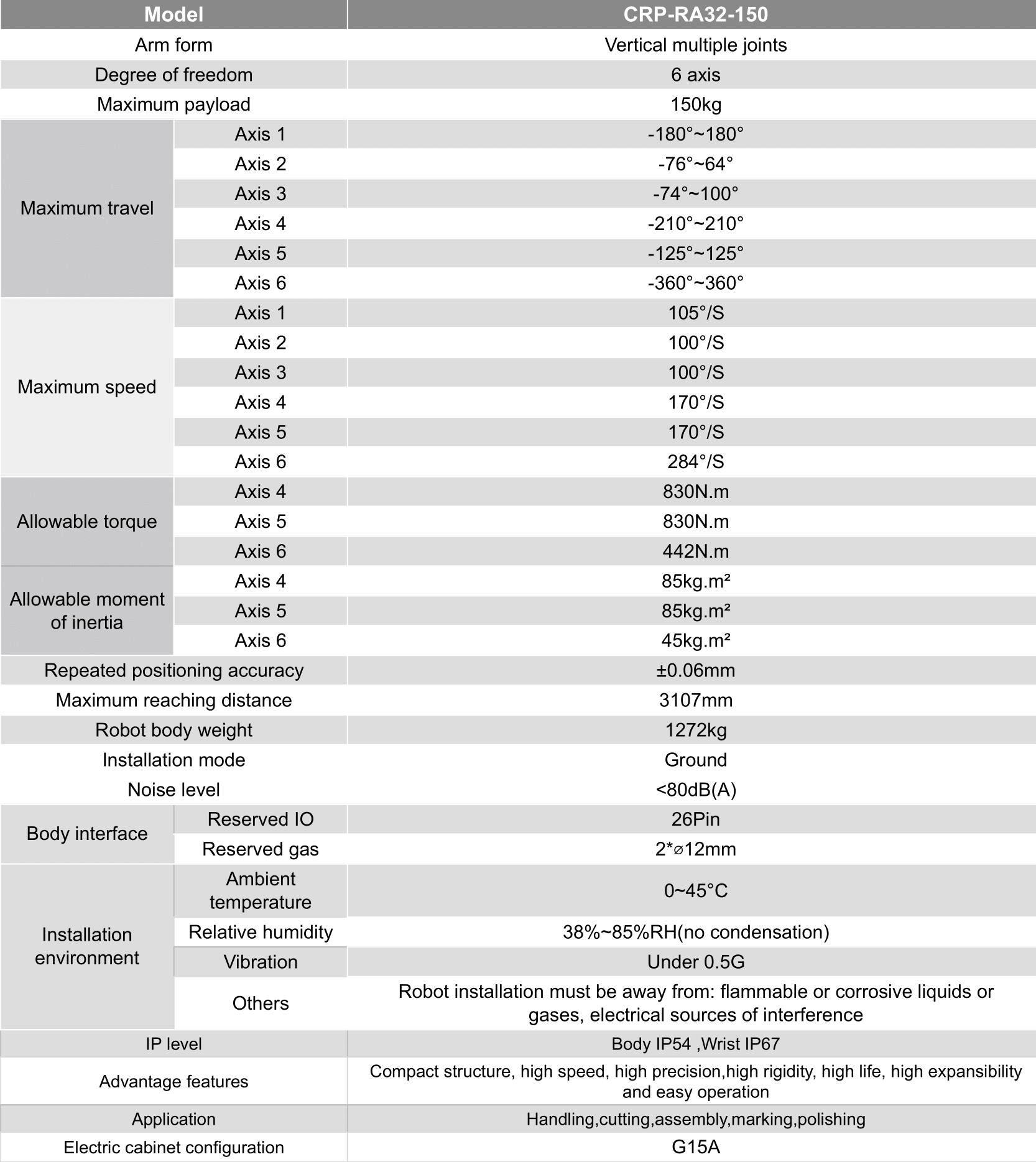

Specification

Technical Documents

Download all our documents or select the relevant one from the drop-down menu below and get the most out of our products.

CRP-RA32-150
